DRY MATERIAL
| MILL |
SPEED R.P.M |
B.H.P. |
APPROX OUTPUT LB./HR. |
| 1A |
600 |
4-5 |
400 |
| 2A |
550 |
6-7 |
600 |
WET MATERIAL
| MILL |
SPEED R.P.M |
B.H.P. |
APPROX OUTPUT LB./HR. |
| 1A |
600 |
5-6 |
250-300 |
| 2A |
550 |
8-9.5 |
350-400 |
|
 |
PARTS LIST FOR 1A & 2A GRINDING MILL
| 1. Frame |
16. Spring(Front Plate) |
31. Rod-shoe to hopper |
| 2. Box |
17. Click |
32. Bridge and rod |
| 3. Bottom hopper |
18. Regulating Wheel |
33. Feed regulating nut |
| 4. Bearing(chair & cap) |
19.Standard-with arm |
34. Top Hopper |
| 5. Bearing (brasses) |
20.Shaker arm |
35. Screen for shoe |
| 6. Bearing (oil lid) |
21.Spacer for shaker arm |
36. Shet steel hopper |
| 7. Spindle and "O" rings |
21a.Collar |
37. Drip Dish |
| 8. Toe for spindle |
22.Spring (Shoe) |
38. Leg and Foot |
| 9. Driving Plate |
23.Shaker rod Bearing |
39. Brace for Leg(long) |
| 10. Carn |
24.Jigger |
40. Brace for Leg(short) |
| 11.Spring Collar |
25. Standard-Plain |
41. Flywheel |
| 12. Spring (Spindle) |
26. Shoe |
42. Medium D.F. Grinding plate |
| 13. Front |
27. Pin for Shoe |
43. Plate bolt |
| 14. Thrust block |
28. Shoe Link |
44. Driving pulley |
| 15. Click holder |
29. Spring(Jigger) |
45. Sapnner for Spindle Nut |
| |
30. Rod Show to hopper |
|
|
|

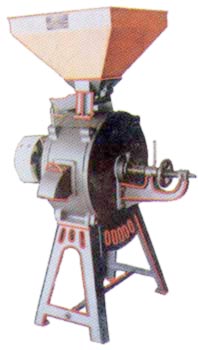

Gangadhar 11-A Mini Grinding
Maize, Tomato, Pepper, Coffee,
Chemicals, Spices, Sugar,
Wheat, Rice etc. also available.
|
Plate
Size
|
Power
required
|
Speed
R.P.M. |
Approx. Output |
| 7" |
2 H.P. |
600 |
15/20 Kgs
per hour |
Average output of Wheat,
Maize, Rice etc. |
|
|
The heart of the Mill is Mill Stones and in this respect the Mill is provided with famous Gangadhar Mark Emery Stones, which are made from synthetic Emery and Silicon Carbide grains which have proved their outstanding grinding power. Strict checking of Tensile Strength, Setting Time and Moisture Resistance Power is ensured at every stage of production. Our stones do not require manual setting as grinding surface of every pair is set smooth on automatic stones setting machines. |
| TECHNICAL AND SHIPPING DATA |
| SIZE IN MM (DIAMETER) |
300 (12")
|
400 (16")
|
500 (20")
|
600 (24")
|
| Pulley Size |
25x9 (10")
|
30x10 (12")
|
40x10 (16")
|
48x10 (18")
|
| R.P.M. |
750
|
650
|
550
|
500
|
| H.P. Required |
5
|
10
|
15
|
25
|
| Output per Hour |
250 Kgs.
|
430 Kgs.
|
625 Kgs.
|
1000 Kgs.
|
| Hopper Capacity |
30 Kgs.
|
50 Kgs.
|
65 Kgs.
|
75 Kgs.
|
| Gross Weight |
165 Kgs.
|
205 Kgs.
|
335 Kgs.
|
515 Kgs.
|
| Net Weight |
130 Kgs.
|
170 Kgs.
|
263 Kgs.
|
405 Kgs.
|
| Volume Packed in Cbm |
0.35
|
0.40
|
0.50
|
0.85
|
|
